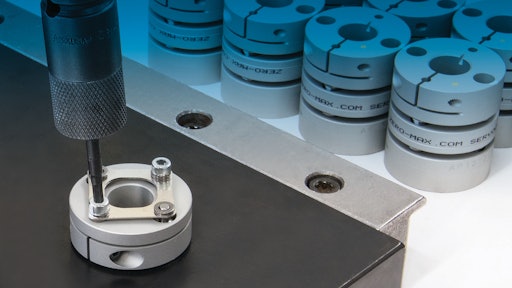

ServoClass Couplings with Solid Film Lubricant Treatment

The ServoClass couplings from Zero-Max feature a solid film lubricant treatment on the threads of all the socket head cap screws to ensure couplings are assembled correctly and will grip the shaft precisely.

• Runs smoothly and performs at the highest level in applications of any speed
• Features precise 304 stainless steel disc members
• Aligned and locked precisely into position onto high strength aluminum alloy hubs with ISO 4762 XL 12.9 corrosion-resistant socket head cap screws
• Well suited for precise positioning requirements and high speed reversing loads common of many AC and DC servo motor systems
• Provides superior shaft engagement and reliable use with system speeds up to 10,000 rpm
• Increased clamping strength eliminates need for keyways while providing a clean, balanced design
• Available in 12 sizes with both single and double disc models
• Handles torque ratings ranging from 0.5 to 250 Nm
• Accommodates parallel (radial), axial and angular misalignments
• Manufactured with RoHS compliant materials
