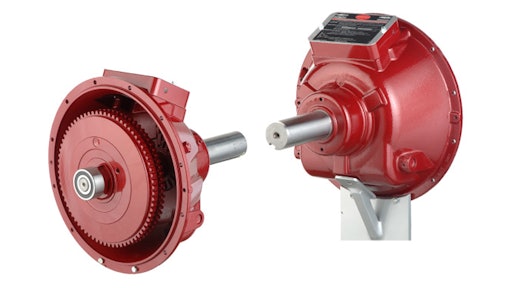

Twin Disc Inc. announces the introduction of the RO 314/311 "Remote Over Center" PTO.
- Uses patent-pending design to remotely engage over-center mechanism
- Complementary to previously released RO114/RO214
- Can be engaged and disengaged remotely via control valve and/or electronic control when machinery configurations or location hinder easy access to activation
- Hydraulic or pneumatic actuation is achieved through ports, making access to fittings uncomplicated and straightforward
- Hydraulic or pneumatic pressure is required only to engage or disengage the PTO
- Fluid or air supply can be shut off when not needed
- Clutch operation is efficient and cost-effective as it does not require constant hydraulic or pneumatic flow
- Dimensionally similar to current mechanical SP 314/311
- Utilizes three 14 in. (35.6 cm) friction plates in the 314 and three 11 in. (27.9 cm) plates in the 311
- Existing SPs may be field converted to an RO using kits
- Allows for side load and inline applications
- External cooling, filtration or rotary union are not needed
- Suitable for us in wide range of industrial applications including agriculture, construction, manufacturing, mining, timber, and oil and gas production
