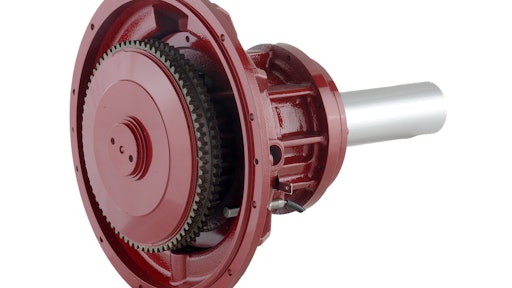

Twin Disc has released two remote-controlled power take-offs (PTOs), the RC214 and RC314.
- Virtually maintenance free and well-suited for difficult-to-service applications
- Well suited for construction, mining, snow removal, forestry, agriculture and recycling
- Excels anywhere heavy-duty disconnect clutch is required
- Hydraulically-actuated with self-adjusting dry clutches, utilizing 240–300 psi of engagement pressure
- No pilot bearings, and mains are oil-lubricated for long life
- Advanced control system can be used for soft-starting high-inertia loads
- Suitable for side load and in-line applications
- SAE #1 housing size
- Optional sintered iron and composite versions are available to increase torque and horsepower capacity
RC214
- Features two friction plates
- Clutch maximum horsepower rating is 376/Class II, 251/Class III and 188/Class IV
- Maximum input torque of 2,195 lbs.-ft. organic, and 2,748 lbs.-ft. sintered
RC314
- Includes three friction plates
- Horsepower rating is 564/Class II, 376/Class III and 282/Class IV
- Torque ratings at 3,297 lbs.-ft. organic and 4,125 lbs.-ft. sintered
