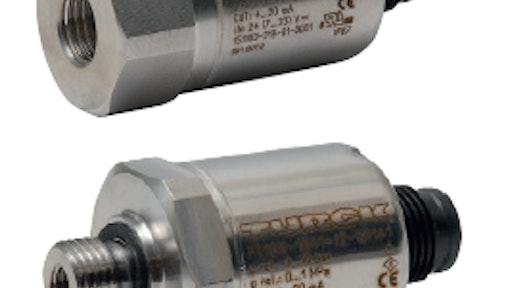

Turck introduces the PT2000 line of pressure transmitters, which offer a welded stainless steel measuring cell for increased durability and increased chemical compatibility.
- Features no elastomer seals
- All wetted materials are 316L stainless steel
- Transmitter housing is gel filled, eliminating problems caused by condensation in applications with wide range of temperatures
- Housing is more compact, suiting applications with space constraints
- Handles pressures up to 1,000 bar (14,503.8 psi) as well as process media up to 135 C (275 F)
- Equipped with standard M12 connector that is available in multiple wiring configurations to allow for easy integration into existing applications
- Available with process connections such as NPT, BSPP and SAE commonly used in North American hydraulic applications
- Offers multiple output signals to provide additional options for customers and adaptation to users’ existing control circuitry
- Signals include 4-20 mA, 0-10V, ratiometric, 1-6V, and 0-5V
- Includes IP67 rating
- Operating temperature range of -40-135 C (-40-275 F)
