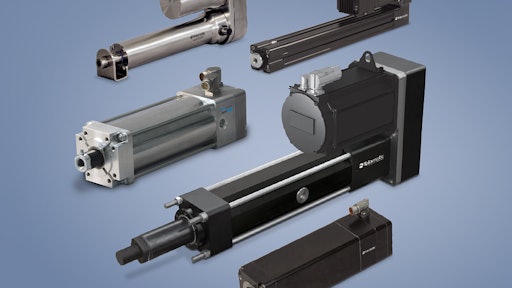

The Tolomatic family of high force electric rod-style actuators now features expanded stroke lengths up to 1.5 m (60 in.), allowing more flexibility for converting motion control applications with hydraulic or pneumatic cylinders to electric linear motion.
- Designed for high duty-cycle performance in demanding applications
- RSX, RSA and ERD electric rod-style product families utilize planetary roller screws for longer service life in compact package compared to electric actuators utilizing ball screw technology
- Highest-force actuator, the RSX, is expanded to 1.5 m stroke length (from 600 mm [23.6 in.])
- RSA and ERD are expanded to 1.5 m and 1.2 m (47.2 in.), respectively, from 450 mm (17.7 in.)
- RSX utilizes tie-rod design, provides forces up to 133.5 kN (30,000 lbs.-ft.) and is ideal for hydraulic replacement applications
- RSA HT is available in four sizes, forces up to 58 kN (13,039 lbs.-ft.) and is the most flexible product line for fluid power replacement
- ERD stainless steel, hygienic electric actuator, rated IP60k for applications in food and beverage market, is available with forces up to 35 kN (7868 lbs.-ft.)
- Available with unique features to aid conversion of fluid power cylinders and maximize life, including easy re-lubrication and ingress protection ratings from IP65 to IP69k
