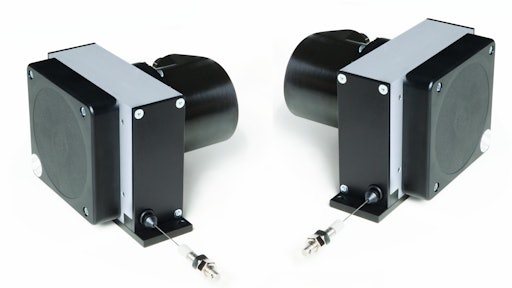

SIKO introduces the SG61 and SG121 wire-actuated encoders.
- SG61 measure lengths up to 6 m (236.2 in.)
- SG121 measures up to 12 m (472.4 in.)
- Features compact size, sturdiness and flexibility
- Installation depth of 70 x 85 x 105 mm (2.8 x 3.3 x 4.1 in.)
- Robust aluminum housing, coupled with impact-resistant plastic, survives in harsh operating conditions
- Operating temperature range of -40-80 C (-40-176 F)
- Resistant to high shock and vibration loads, dirt, dust and water
- Version with integrated water drain holes to prevent water that penetrated sensor from freezing available for outdoor applications in low temperature ranges
- Flexible 58-mm (2.3-in.) flange system in both wire-actuated encoders can be used with almost any interface
- Customers can select incremental interface such as HTL or TTL, or absolute interface such as analog, SSI, CANopen, SEA J1939, CANopen Safety, Fieldbus or Ethernet
- Wire outlet with Wire-Flex technology ensures wear on wire is kept to a minimum, even if it pulls out at an angle
- Conical shape of wire outlet and various types of wire ensure any deposits on wire can be removed easily
- Automatically compensates for mechanical tolerances in machine or vehicle, and protects function and service life of the system
- Provides increased safety in combination with redundant WV58MR safety rotary encoder and can be used in the overall system in applications up to performance level d (PLd)
