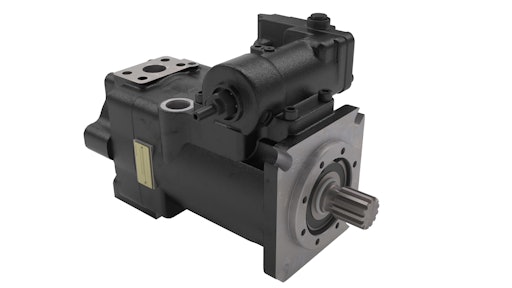

Oilgear introduces its latest PVG Series pump, the PVG-180.
- Open-loop, variable-displacement, axial piston pump
- Suits applications which require high response and speed in rugged environments
- Provides fast control response
- Thrives on low viscosity fluids
- Available in a variety of control and porting options
- Fits into the space-constrained applications
- Produces 30% more power than PVG-150 while fitting in the same size frame
- Features proprietary Hard-On-Hard Technology which provides greater resistance to contaminants, as well as higher operation pressures from comparable models
- Withstands continuous use without worrying about corrosion
- Maximum displacement is 10.98 in3/rev (180.0 ml/rev)
- Rated continuous pressure of 5,000 psi (344.8 bar) and peak pressure of 5,800 psi (400.0 bar)
- Flow rate of 78.0 gpm (295.3 l/min)
- Maximum speed is 2,400 rpm
- Power input is 260 hp (193.9 kW)
