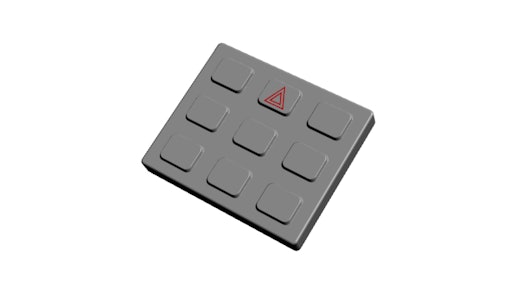

Marlin Technologies' pushbutton keypad with CANbus and inputs/outputs is a silicone rubber keypad with nine pushbuttons that can incorporate custom icons to meet specific applications.
- Six inputs and seven outputs provided for directly interfacing to and controlling equipment
- Outputs include two 10A, two 6A and three 3A for activating work lights, headlights and other high current loads
- Outputs can be controlled directly by pushbuttons or via CAN messages
- Up to three indicators lights can be provided on each pushbutton
- Keypad icons are backlit for nighttime operation
- Pushbuttons and inputs are transmitted on CANbus for controlling other devices
- Pushbuttons are large and generously spaced for gloved-hand use
- Keypad measures 4 in. W x 4.8 in. L x 0.63 in. D above mounting panel
- One 12-pin and one 6-pin Deutsch connectors provide all connections
- Electronics are encapsulated within the keypad and exceeds IP67 rating for outdoor use
- Designed for 12V DC vehicle applications
