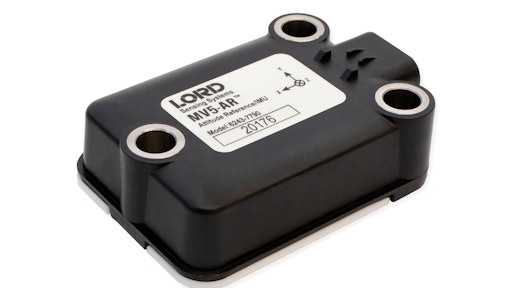

The LORD Sensing MV5-AR measures dynamic inclination, acceleration and angular rate in challenging environments such as those encountered by heavy-duty on- and off-highway equipment.
- Auto-Adaptive Extended Kalman Filter (EKF) removes errors associated with vibration, sudden linear motions, and quake, resulting in true reading of inclination under all conditions
- Power and mounting flexibility make it a single-part solution for various applications
- Full accuracy over entire operational temperature range of -40-85 C (-40-185 F)
- High performance 6-DOF MEMs sensor suite provides best possible accuracy regardless of mounting angle
- Mechanical isolation technology ensures high shock resistance and reliability
- Based on LORD Sensing's fifth generation industrial/aerospace solid-state MEMS accelerometer and gyro inertial sensor technology
- Compact and rugged reinforced PBT housing is fully sealed for immersion, pressure wash (IP67, IP69K)
- Low-cost, rugged, reliable AMPSEAL 16 connector
- Optional metal guard plate protects sensor and connector - permits connector insertion/removal
- Low-cost, compact size
- Full 360-degree measurement range about all axis
- Out-of-the-box solution reduces development time
- Provides inertial and slope J1939 or CANopen messages in standard configurations
- Customized CAN protocols and messages are available
