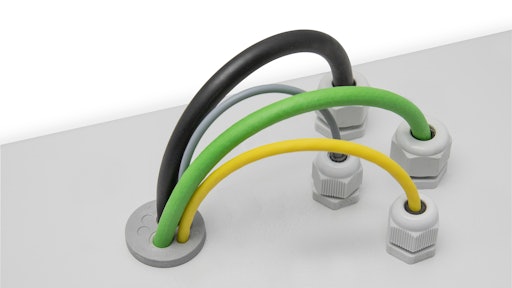

icotek is expanding its range of cable entry plates with the articles KEL-DP 25 version A and KEL-DP 32 version A and B.
- Fits metric standard cutouts M25 and M32
- Up to 13 different cables can be inserted depending on the model
- Possible cable diameter of cables to be inserted is between 5.2 and 8 mm (0.2-0.3 in.)
- Membrane only gently needs to be pierced and the cable can be passed through
- Punctured membrane which is no longer required can be closed again with the icotek plug ST-B
- Can be installed tool free by simply snapping it into the cutout
- Integrated spring bars also center the position of the KEL-DP
- KEL-DP 25 is available in version A (for sheet thicknesses from 1.5-2.5 mm [0.06-0.1 in.])
- KEL-DP 32 is available in version A (for sheet thicknesses 1.5-2.5 mm) and version B (for sheet thicknesses 2.8-4.0 mm [0.11-0.16 in.])
- Construction height is 5 mm (0.2 in.)
- Includes certifications such as IP65 (certified according to DIN EN 60529: 2000-09)
