icotek AT-PP and the AT-K-M IMAS-CONNECT Adapter Grommets

icotek is expanding its range of adapter grommets for its IMAS-CONNECT adapter system to include the AT-PP and the AT-K-M.

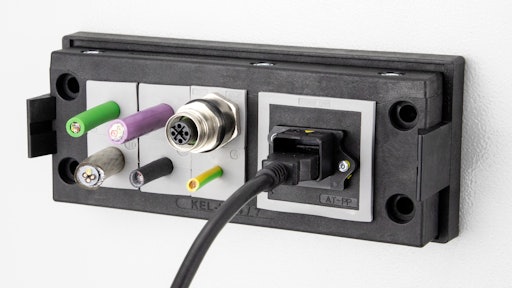

AT-PP adapter grommet

• Based on a KT large cable grommet
• Integrated polyamide body
• Screw-on housing enables all modules' compact PushPull module systems can be routed into the grommet
• Pre-assembled cables and Push Pull termination points can be routed through same knock-out
• Reduces need for multiple knock-outs, reducing labor time and costs as well as space on the side of a machine
• Features  protection class IP65

AT-K-M adapter grommet

• Based on KT small cable grommet
• Integrated nickel-plated brass body
• Available with internal threads M5 x 0.5, M8 x 1.0, M12 x 1.0, M12 x 1.5, M14 x 1.0 and M16 x 1.5
• Compatible with all icotek cable entry systems where traditional KT grommets can be used
• Protection class up to IP66 depending on type of cable entry used
