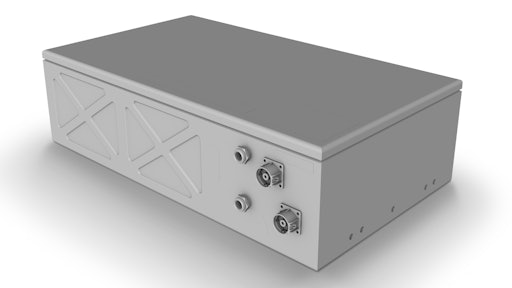

XALT XLP Low Profile Lithium-Ion Battery Pack for Commercial Vehicles

XALT Energy, a brand of Freudenberg Sealing Technologies, introduces its XPAND Low Profile (XLP) Pack, a low-profile, high energy density battery pack.

• Flat, scalable package offers easier installation of new powertrain technologies.
• Can be installed in buses, trucks and trains in spaces where height or depth is limited
• Measures 185 mm high, 612 mm wide
• Available in lengths between 360-1080 mm depending on the energy capacity
• Fits securely within frame rails of new and existing medium and heavy trucks and buses
• Eliminates need for OEMs to redesign and raise the floor of delivery trucks and buses in order to accommodate high amount of energy storage required for long-range applications
• Can be mounted horizontally or vertically for greater packaging flexibility
• Coupled with XALT’s battery management system architecture to offer flexible, fast-charging, clean power options
• Direct liquid cooled
• Capable of being connected in series up to 1,250V per string
• Includes IP67 rated enclosure
• Accommodates side or bottom mounted interface brackets
• Standard configurations will include one, two or three cell subpacks within a single enclosure with further packaging customization available
• Provides energy densities in excess of 260 Wh/l, and specific energies greater than 210 Wh/kg
• Compatible with higher-power and medium-power versions of XALT’s large format cells as well as next generation of very high-power energy cells
