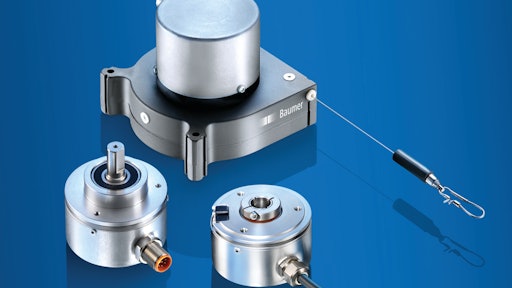

Baumer has introduced the MAGRES Sin/Cos Magnetic Absolute Multiturn Series of Encoders with high-reliability analog output.
- Well suited for data transmissions commonly implemented on utility vehicles, cranes and industrial trucks
- Output variant design with analog interface simplifies system integration and facilitates diagnostic performance
- Available with solid and blind-hollow shaft options
- Provides 12-bit singleturn and 16-bit multiturn resolution with analog output by 12-bit digital-to-analog (D/A) transducer
- Compact analog encoders coupled with cable-pull assemblies available for applications requiring height or length acquisition up to 7,500 mm (24.6 ft.)
- Robust, non-contact magnetic single and multiturn sensing technique is absolutely wear-free and resistant to dirt, dust, condensation and temperature fluctuations
- Endures shock and vibration impacts up to 500 g and 30 g respectively
- Operates dependably in temperatures ranging from -40 to 85 C
- Integrated self-diagnostics continuously monitor position values for plausibility and ensure failsafe encoder operation
- Available with voltage outputs from 0 to 10V or 0.5 to 4.5V, or with current output from 4 to 20 milliamps
- Optional two channel output forms a redundant system to guarantee high level of performance in demanding applications
- Default settings and on-site parameterization by teach-in simplify device configuration
