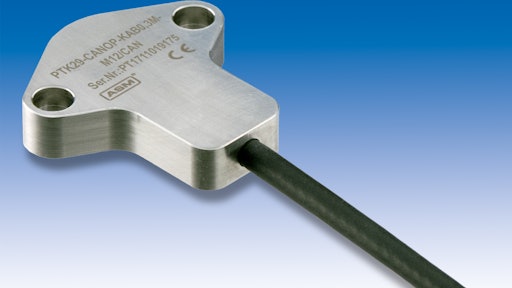

ASM Sensors introduces the POSITILT PTK29 inclination sensor that compensates dynamic influences to give correct values even when in motion.
- Measures inclination between +/-180 degrees with one axis or +/-60 degrees with two axes
- Utilizes gyro-compensated MEMS technology
- Position signal is instantaneous with no delays and has static linearity up to 0.05 degrees
- Can be mounted with selectable axis orientation
- Sensor electronics are completely enclosed and protected by hermetically sealed stainless steel housing
- Compact 10 mm (0.39 in.) flat and maximum 49.5 mm (1.94 in.) wide housing enables installation in space-restricted locations
- Hermetically sealed stainless steel housing with redundant output options available for safety critical applications
- Available in protection class IP67
- Operates in areas of high shock and vibration in temperature range of -40-85 C (-40-185 F)
- Shielded against electromagnetic disturbances
- Available with digital (CANopen, CAN SAE J1939) and analog outputs
