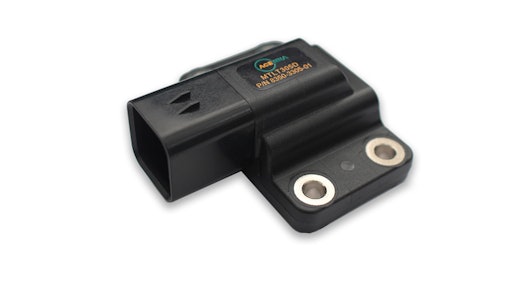

ACEINNA (pronounced “A See Nah”) announces the availability of its MEMS-based, MTLT305D Dynamic Tilt Sensor Module.
- Combines accelerometers, gyroscopes and temperature sensor with advanced calibration and correction algorithms
- Provides accurate 3D acceleration, 3D rate and Pitch and Roll measurement in dynamic, moving vehicle applications
- Uses advanced sensor fusion (Extended Kalman Filtering) and calibration algorithms to achieve 0.5 degree tilt and <10 milli-g acceleration accuracy in wide variety of dynamic conditions
- Calibrated to accurately operate over wide temperature range of -40-85 C (-40-185 F)
- Completely sealed compact module (65 x 66 x 27 mm [2.56 x 2.59 x 1.06 in.])
- Integrated connector
- Suited for rugged construction, agriculture and other off-road applications
- Offers high reliability, MTBF > 50k hours and is ITAR- Free
- Miniature plastic housing is durable under hazardous environments (IP68 and IP69K ratings)
- Features Ampseal 16, 6 position connector
- Supports wide 4.9-32V supply input range (qualified for use in both 12 and 24V vehicle platforms)
- Easy to integrate
- Supports industry standard SAE J1939 messaging over CANbus
- Included ACEINNA NAV-VIEW software provides simple to use graphical interface to display, record, playback, and analyze all parameters over the RS232 port
- NAV-VIEW can also be used to set wide range of user-configurable fields to optimize system performance for various dynamic applications
